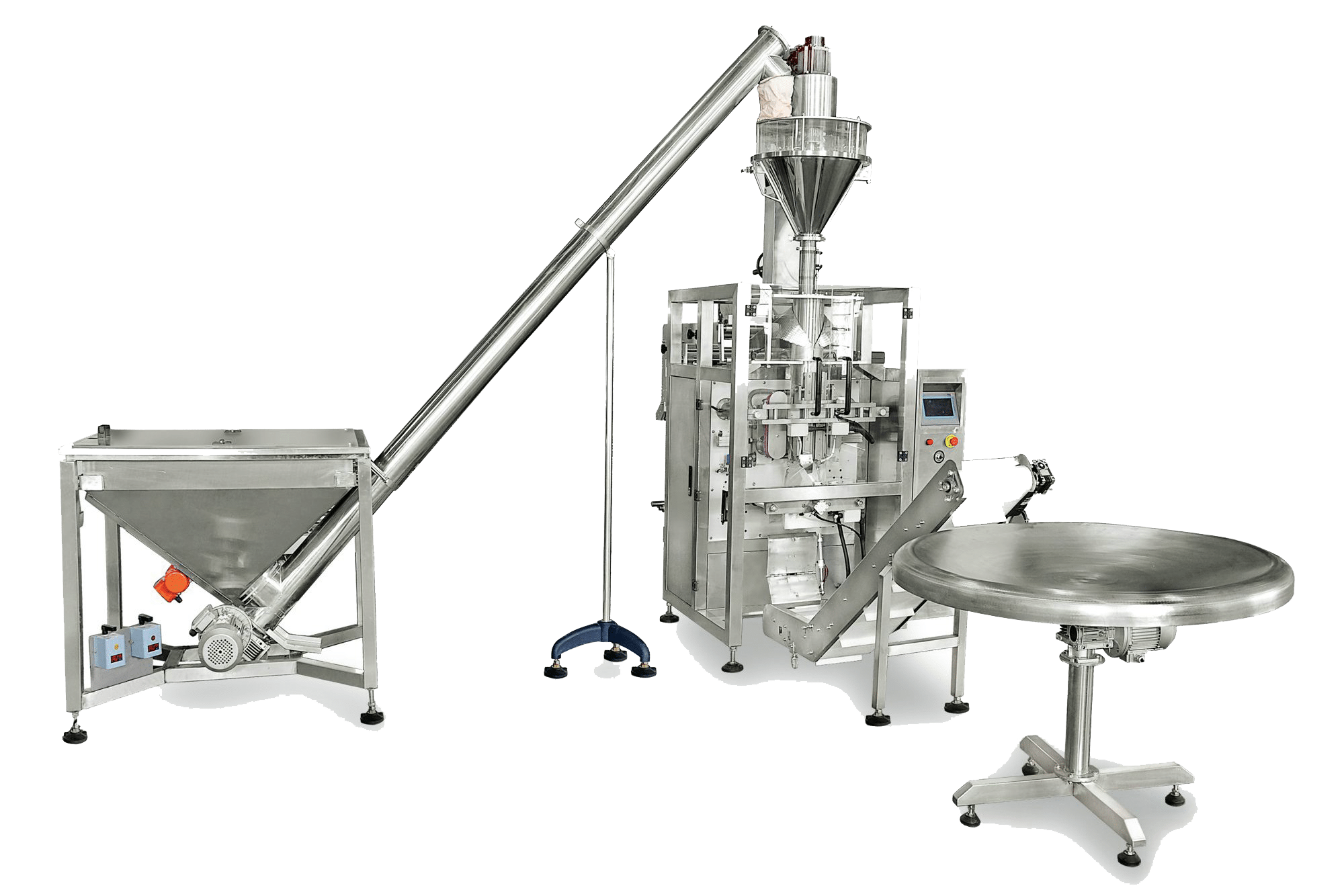

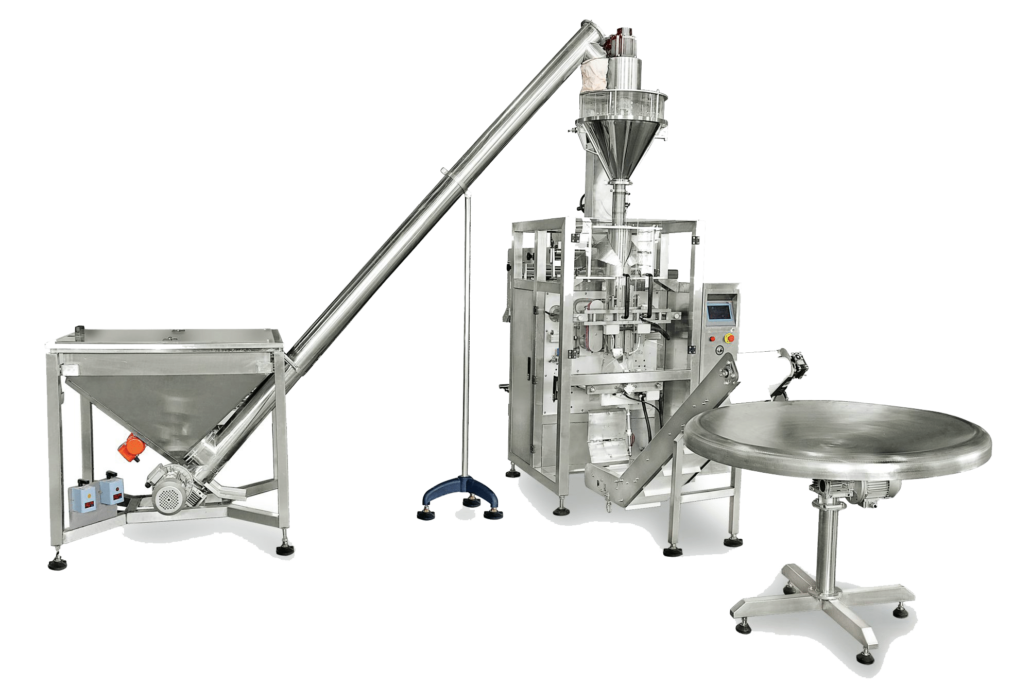

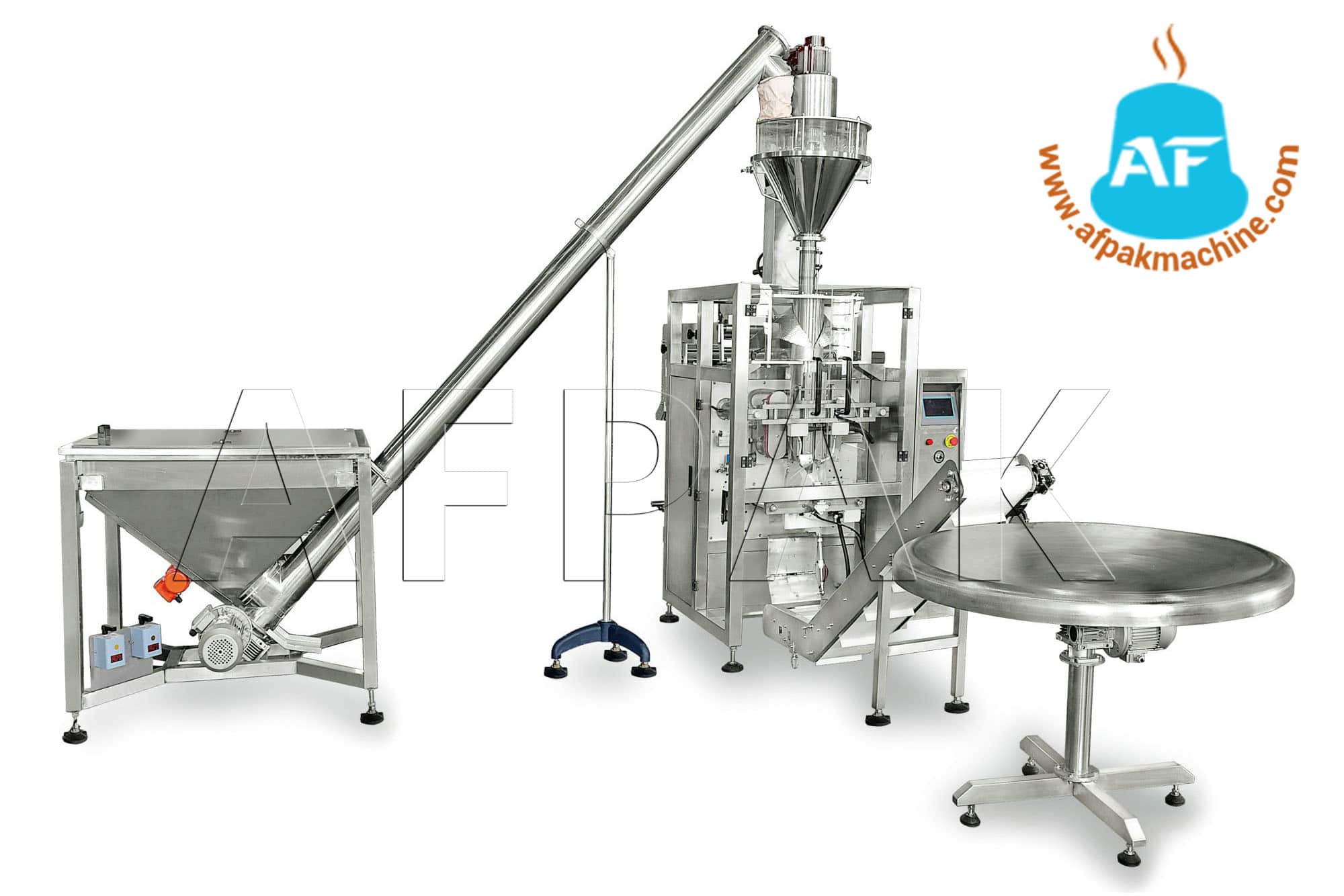

AF-FFS Bag Forming Filling & Sealing Machine

Brief Introduce:

AF-FFS coffee filling sealing packaging machine is for Bags forming.

Servo motor controlled film walking, high precise with less errors.

Servo motor controlled vertical auger to fill, keep 0.3 grams errors

Global top brand PLC and Touchscreen, very easy to use and maintain.

Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS316) is used for all parts in contact with product.

Features
  1. Efficient: Bag – making, filling, sealing, cutting, heating, date / lot number achieved in one time;
  2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
  3. Profession: Independent temperature controller with heat balance enables different packing materials;
  4. Characteristic: Automatic stop function, with safe operation and saving the film;
  5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Standard Functions
  1. Screw auger to feed coffee/tea or Vacuum coffee feeder (two options)
  2. Vertical auger filling (filling volume is adjusted easily)
  3. Bag forming
  4. Seal the degassing valve on the bags
  5. Sealing (can make standup bags)
  6. Outputting
Sealing Type Center Seal, stand-up seal, four side seal(optional)
Roll Width 320 mm -820 mm
Feeding System Auger Filler / Screw Filler
Electrical Supply 220 V, AC, 50/60 HZ
Packing Film Composite material: OPP/CPP,OPP/CE,MST/PE/PET/PE
Temperature Controller PID
Machine Speed 5-60 Pouches / Min ( Depends upon Pouch Size and product weight to be filled)
Contact Parts Food Grand Stainless Steel SS 316 / SS 304
Air Consumption 0.3m3/min, 0.65Mpa
Power Consumption 2.2 KW
Additional Attachments Batch Cutting Device,  Pneumatic Coding Device, Nitrogen Flushing

coffee bags


    Please prove you are human by selecting the star.

    Samples

    FAQs

    How long need to build one machine like this?

    Normally we need 2-3 months to produce a machine.

    What should I prepare to build a machine?

    As to our experiences, we suggest you ship us your empty containers, sealing materials, and filling materials, This will be a great help for the machine testing.

    What do I need in my factory to work with this machine?

    You only need the big enough air compressor and Nitrogen generator. If you don’t have, we can also offer.

    What's the warranty of this machine?

    We offer 2 years warranty on all our machines, and lifelong maintain service.

    How to install this machine when we get it?

    Machines will ship in a complete package, you will no need to assemble again in your factory. We suggest you to invite our engineers to your factory to train your people.
