NESORESSO CAPSULE FILLING & SEALING MACHINES

AFPAK offers top of the Nespresso coffee capsule filling sealing packaging machines that will bring your company up to speed with the latest trend.

Nespresso, as the most successful single serve coffee package, is more and more popular in the whole world. Nespresso’s patents began to expire in 2012, gradually allowing competitors to offer capsules and machines compatible with the Nespresso system. The nespresso capsule filler produced is very popular.

EXPLORE OUR MACHINES

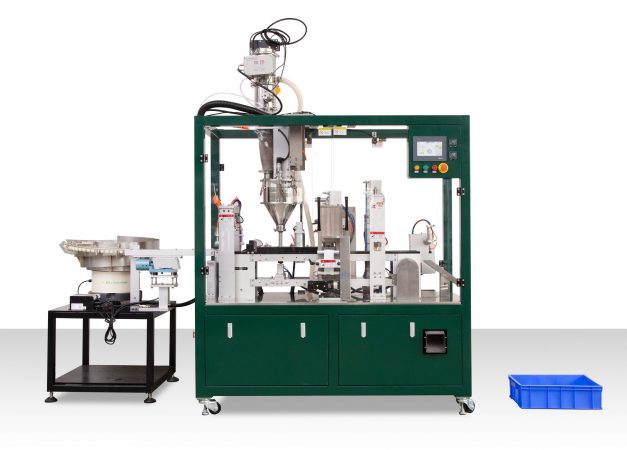

AF-RN1S Nespresso Capsules Filling & Sealing Machine

NESPRESSO FILLING MACHINE

Popular Choice

AF-RN1S Nespresso Coffee Capsule Filling Sealing Machine

  • Fast speed: 1 lane working, Up to 70 cycles/min, Produce up to 70 capsules/min
  • Round table driven by motor, maintain-free design.
  • Vertical Empty capsules storage and dropping system to save labors and time.
  • Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy.
  • Single phase power can be used in any places
  • With wheels, can be moved easily
  • Smart control: No capsules-No filling-machine stop; No lids – No sealing, etc

Brief Introduce:

Nespresso, as the most successful single serve coffee package, is more and more popular in the whole world. Nespresso’s patents began to expire in 2012, gradually allowing competitors to offer capsules and machines compatible with the Nespresso system. Packaged portions of espresso coffee, like those from Nespresso, has become one of the fastest growing segments of the coffee market. Every year, many small to mid-sizes companies are bringing some novel tastes to the Nespresso coffee market.

The AFPAK AF-RN1S Nespresso coffee capsule filling sealing is a fully automatic machine and very popular because of its small size, fast speed and easy to use.

We have built this machine to produce aluminum capsules and plastic capsules.

This is a customize-built machine, you can use your own designed capsules in this machine.

It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dreeings, desserts, dry soups, frozen dished, cosmetics, nespresso capsule filler and so on.

Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.

Model AF-RN1S
Lanes 1
Output Up to 70 capsules/min or 4200 capsules/h
Filling Accuracy ±0.2 grams
Voltage 1* 110V/220V/50HZ/60HZ
Machine weight 750 Kgs
Machine dimensions 1800*1200*2200 mm
Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
  1. Fast speed: 1 lane working, Up to 70 cycles/min, Produce up to 70 capsules/min
  2. Round table driven by motor, maintain-free design
  3. Vertical Empty capsules storage and dropping system to save labors and time
  4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
  5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
  6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
  7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
  8. Standard control system from Omron or Siemens or Allen Bradley
  9. Various exit options for different second packaging solutions.
  10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
  11. Easy cleaning and product change, even between coffee and soluble powders
  12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
  13. Safety Door: Open door, machine stop
  14. Small footprint layout required: you can put this machine in any places

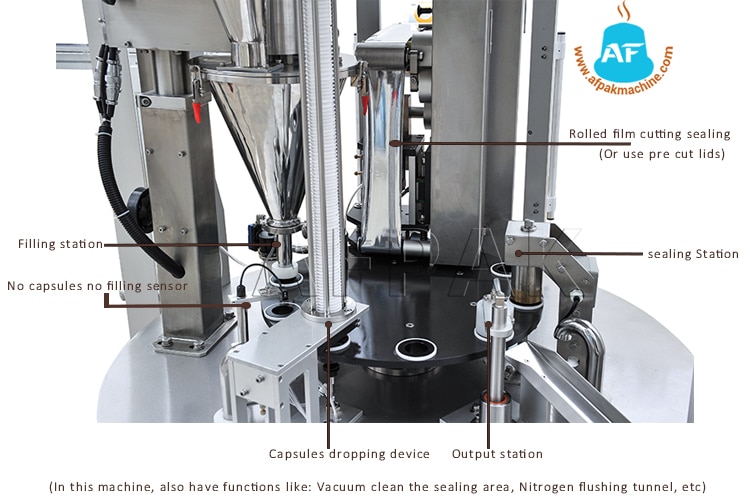

  1. Vertical capsules feeding system
  2. Automatic detect whether capsules well loaded on the machine by sensor.
  3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
  4. Clean the capsule edge and press the coffee tightly
  5. Put pre-cut lids (can also use rolled film)
  6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
  7. Seal outside aluminum/plastic film
  8. Output to the conveyor
  1. In-line weighing system
  2. Cutting and putting the filter on the capsules button
  3. Integration of pouches packaging machine
  4. Integration of boxes packaging machine
  5. Liquid dosing system for different favors of coffee
  6. Auto sort capsules and feeding to the machine


    Please prove you are human by selecting the Truck.

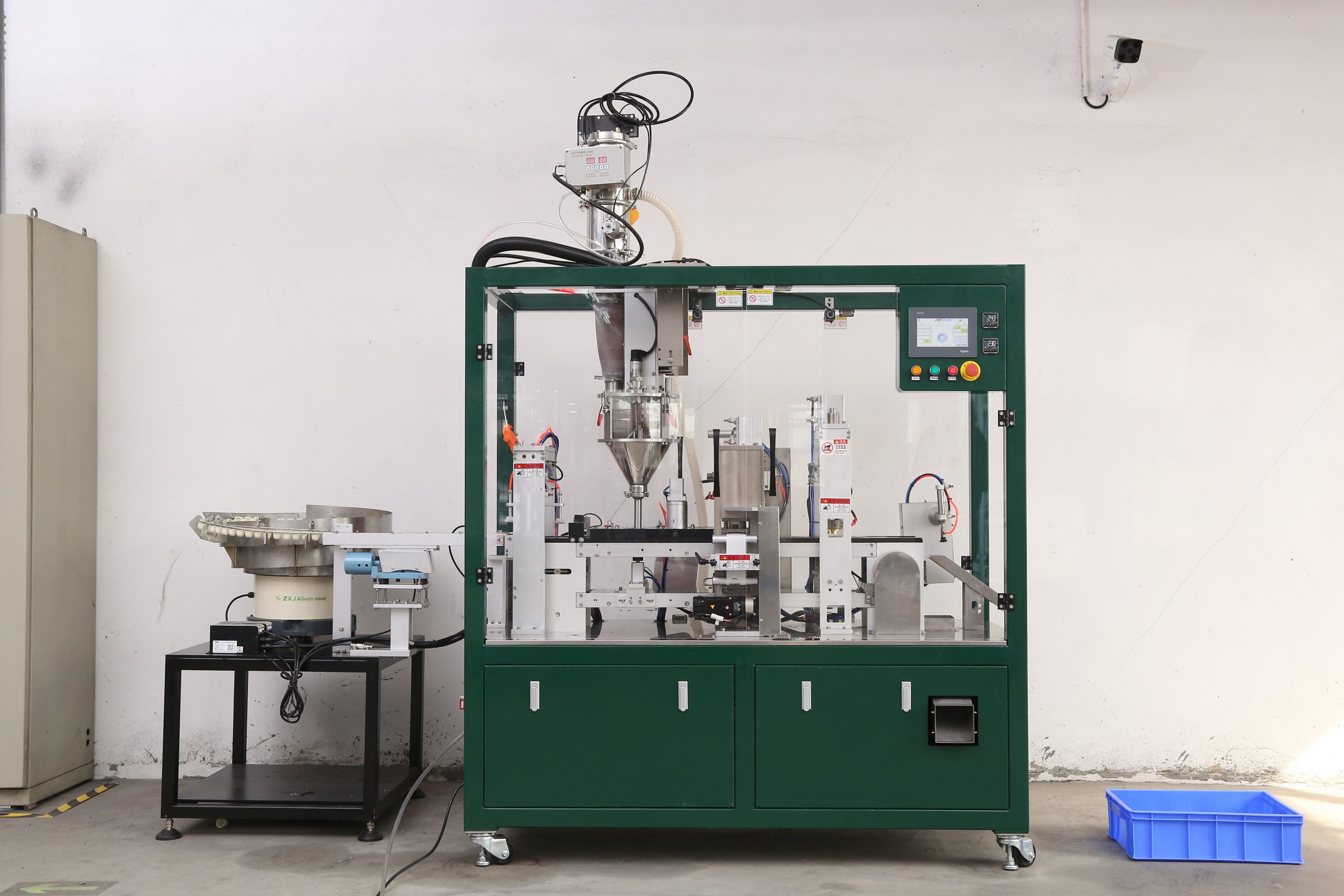

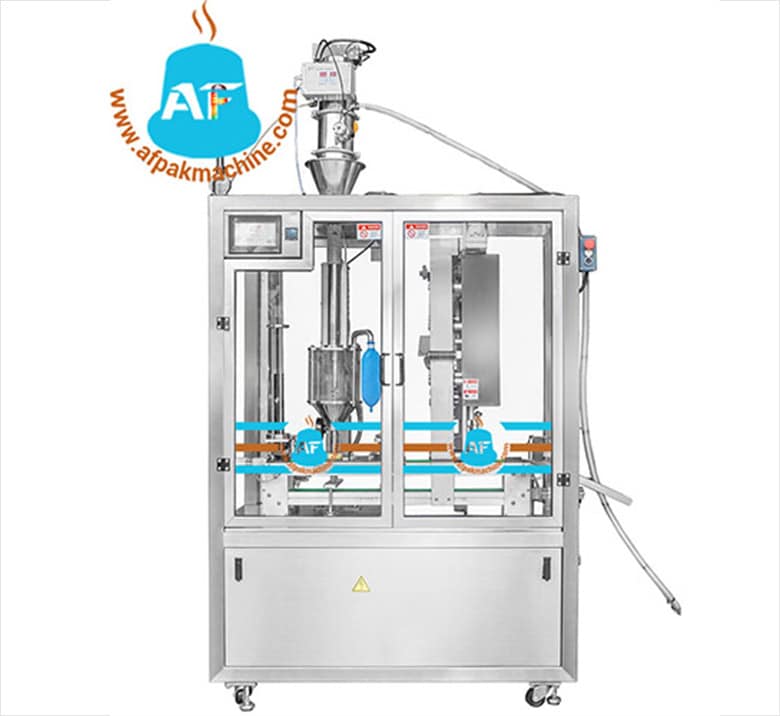

    AF-HN1 Nespresso Capsules Filling Sealing Machine

    Nespresso filling sealing machine

    AF-HN1 Nespresso Coffee Capsule Filling Sealing Machine

    • The basic machine, 1 lanes can produce up to 50 Nespresso per min.
    • 2021 New design, with advanced functions and components
    • Handle different capsule styles with easy size changeover.
    • Small footprint layout, you can put this machine to anywhere you want.

    Brief Introduce:

    The AFPAK AF-HN1 Nespresso capsules filling sealing machine is designed for small and startup coffee companies.

    This machine uses both plastic and aluminum Nespresso compatible capsules.

    This is a customize-built machine, you can use your own designed capsules in this machine.

    It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished,Nespresso capsule filler, cosmetics, and so on.

    Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.e production performance.

    Model AF-HN1
    Lanes 1
    Output Up to 30 capsules/min or 1800 capsules/h
    Filling Accuracy ±0.2 grams
    Voltage 1* 110V/220V/50HZ/60HZ
    Machine weight 500 Kgs
    Machine dimensions 2000*900*2000 mm
    Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



    1. Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
    2. Maintenance-free, backlash-free carrier plastes driven by pneumatic cylinders to transport the containers
    3. Vertical Empty capsules storage and dropping system to save labors and time
    4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
    5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
    6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
    7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
    8. Standard control system from Omron or Siemens or Allen Bradley
    9. Various exit options for different second packaging solutions.
    10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
    11. Easy cleaning and product change, even between coffee and soluble powders
    12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
    13. Safety Door: Open door, machine stop
    14. Small footprint layout required: you can put this machine in any places
    1. Vertical capsules feeding system
    2. Automatic detect whether capsules well loaded on the machine by sensor.
    3. Servo motor to fill coffee while vibrating, weight around 5-6g ( can be adjust)(Nitrogen flushing here)
    4. Clean the capsule edge and press the coffee tightly
    5. Put pre-cut lids (can also use rolled film)
    6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
    7. Seal outside aluminum/plastic film
    8. Output to the conveyor
    1. In-line weighing system
    2. Cutting and putting the filter on the capsules button
    3. Integration of pouches packaging machine
    4. Integration of boxes packaging machine
    5. Liquid dosing system for different favors of coffee
    6. Auto sort capsules and feeding to the machine


      Please prove you are human by selecting the Heart.

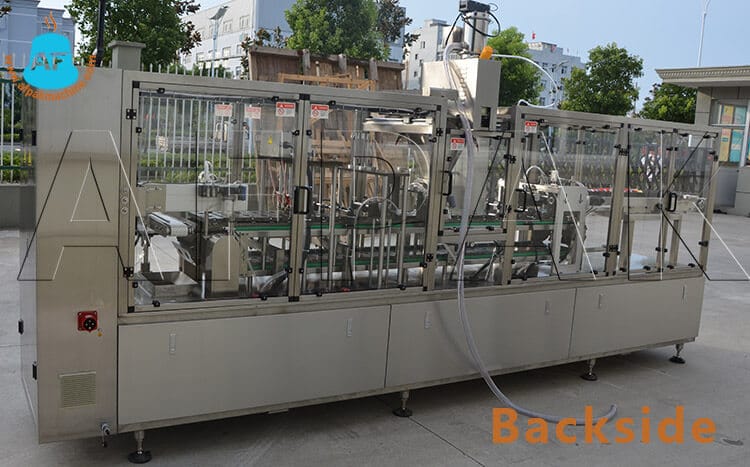

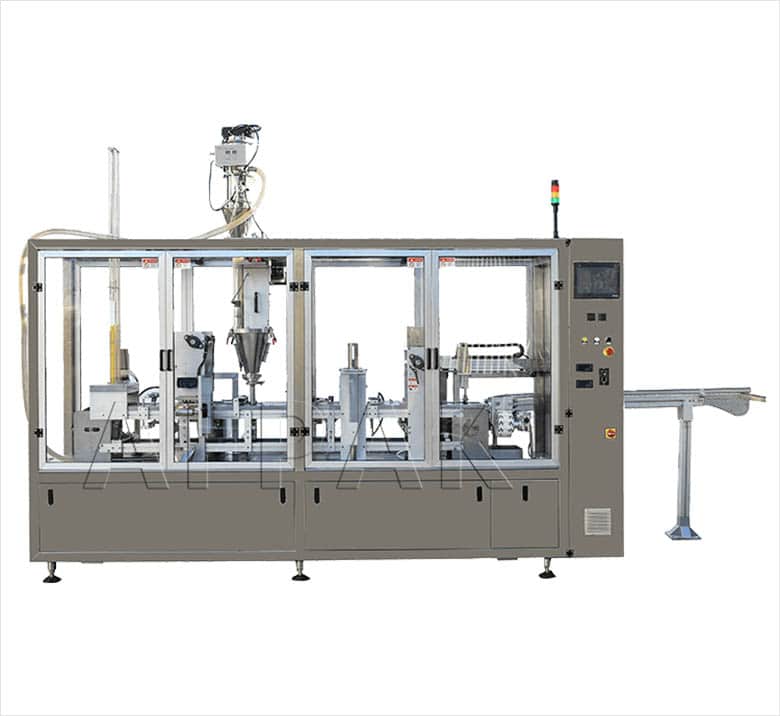

      AF-HN2 Nespresso Coffee Capsule Filling Sealing Machine

      AF-HN2 Nespresso Coffee Capsule Filling Sealing Machine

      • 2 lanes machine can produce up to 100 Nespresso per min.
      • Can use both Separated Nespresso and welded Nespresso in one machine.
      • Each functions can be controlled uniquely. Very easy to learn and use.
      • Servo motor driven augers to dose the coffee, high accuracy and stable working.

      Brief Introduce:

      This machine designs for the medium size coffee companies.

      The AFPAK AF-HN2 fills and seals Nespresso compatible capsules. It can produce 2 capsules for each time and produce up to 6000 capsules per hour.

      This is a custom-build fully automatic In-line filling and sealing machine according to your capsules

      It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, nespresso capsule filler and so on.

      Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

      Model AF-HN2
      Lanes 2
      Output Up to 100capsules/min or 6000 capsules/h
      Filling Accuracy ±0.2 grams
      Voltage 3*240/400V/50Hz/60Hz   8Kw
      Machine weight 2000 Kgs
      Machine dimensions 4000*1500*2000 mm
      Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



      1. Fast speed: 2 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 100 capsules/min
      2. This machine can produce both Nespresso and Aluminum Nespresso compatible capsules
      3. Empty capsules storage buffer system to save labors and time
      4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
      5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
      6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
      7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
      8. Standard control system from Omron or Siemens or Allen Bradley
      9. Various exit options for different second packaging solutions.
      10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
      11. Easy cleaning and product change, even between coffee and soluble powders
      12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
      13. Maintenance-free, backlash-free slat transfer to transport the containers
      1. Vertical capsules feeding system
      2. Automatic detect whether capsules well loaded on the machine by sensor.
      3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
      4. Clean the capsule edge and press the coffee tightly
      5. Put pre-cut lids (can also use rolled film)
      6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
      7. Seal outside aluminum/plastic film
      8. Output to the conveyor
      9. Reject the unqualified capsules.
      1. In-line weighing system
      2. Cutting and putting the filter on the capsules button
      3. Integration of pouches packaging machine
      4. Integration of boxes packaging machine
      5. Liquid dosing system for different favors of coffee
      6. Auto sort capsules and feeding to the machine


        Please prove you are human by selecting the Truck.

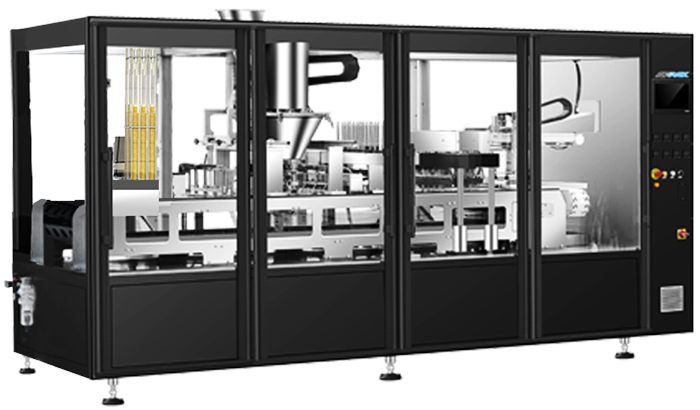

        AF-HN4 Nespresso Coffee Capsule Filling & Sealing Machine

        Nespresso-filling-machine-small

        AF-HN4 Nespresso Coffee Capsule Filling Sealing Machine

        • Four lanes machine can produce up to 200 Nespresso per min.
        • Can be extended with various additional functions.
        • Low noise emissions, meets the highest standards set for process hygiene.
        • Fast delivery, and easy to learn, use and maintain.

        Brief Introduce:

        The AFPAK AF-HN4 fills and seals plastic and aluminum Nespresso compatible capsules.

        This is a fully automatic In-line filling and sealing machine.

        It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, tea, and coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, nespresso capsule filler

        and so on.

        Thanks to the exceptional designs in mechanical and program, this machine guarantees the most product performance.

        Model AF-HN4
        Lanes 4
        Output Up to 200capsules/min or 12000 capsules/h
        Filling Accuracy ±0.2 grams
        Voltage 3*240/400V/50Hz/60Hz   8Kw
        Machine weight 2000 Kgs
        Machine dimensions 6000*1500*2000 mm
        Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
        1. Fast speed: 4 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 200 capsules/min
        2. Maintenance-free, backlash-free timing belt to transport the containers
        3. Empty capsules storage buffer system to save labors and time, only feed capsules in each hour
        4. Extremely Precise Dosing: Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
        5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
        6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
        7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
        8. Standard control system from Omron or Siemens or Allen Bradley
        9. Various exit options for different second packaging solutions.

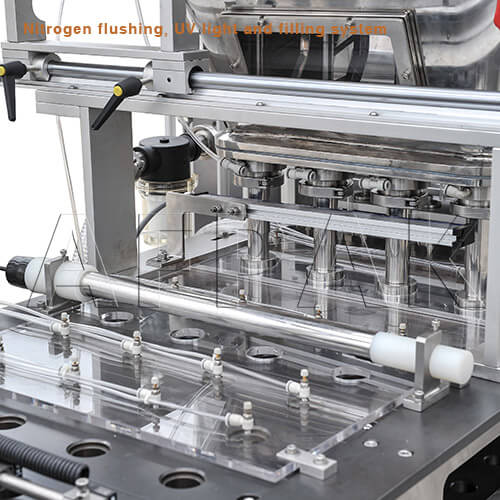

        10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.

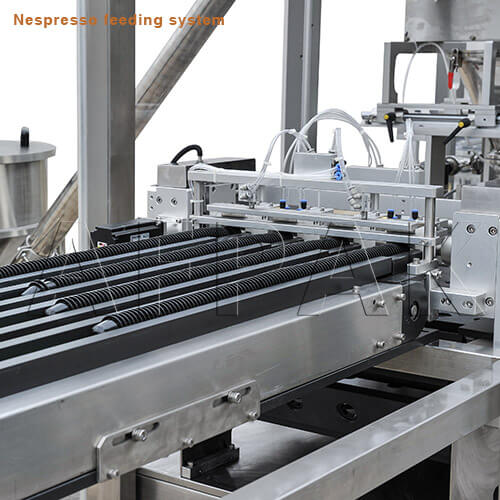

        1. Auto sort capsules and feeding to the machine
        2. Automatic detect whether capsules well loaded on the machine by sensor.
        3. Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
        4. Clean the capsule edge and press the coffee tightly
        5. Put pre-cut lids (can also use rolled film)
        6. Sealing (Nitrogen flushing here)

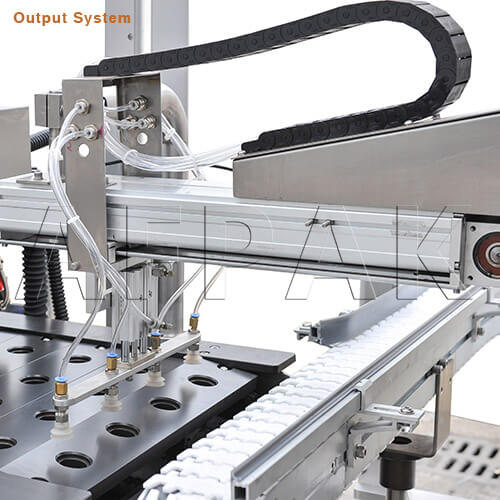

        7. Output to the conveyor
        8. Reject the unqualified capsules.
        1. On-line weighing system for each capsule
        2. Cutting and putting the filter on the capsules button
        3. Integration of pouches packaging machine
        4. Integration of boxes packaging machine


          Please prove you are human by selecting the House.
