DOLCE GUSTO CAPSULE FILLING & SEALING MACHINES

Dolce Gusto is a new trend for the coffee package. It can fill more coffee than Nespresso and can also fill many different materials inside, such as tea leaf, milk powder, Nutritious health products, etc. It becomes more and more popular now.

Because of low cost and easy to operate, AFPAK has helped over 10 different sizes companies to make the Dolce Gusto filling sealing packaging line in the past 2 years, which are all well running in their factories.

EXPLORE OUR MACHINES

AF-HDG1 Dolce Gusto Filling Sealing Machine

coffee filling sealing machines

AF-HDG1 Dolce Gusto Coffee Capsule Filling Sealing Machine

  • The basic machine, 1 lanes can produce up to 30 Dolce Gusto per min.
  • Pneumatic system driven carrier plates, very easy to maintain and clean.
  • Handle different capsule styles with easy size changeover.
  • Small footprint layout, easy to use and maintain..

Brief Introduce:

The AFPAK AF-HDG1 is a fully automatic filling sealing machine specially designed for Dolce Gusto capsules

You can use both Dolce Gusto capsules with and without inside seals in this machine.

This is a customize-built machine, you can use your own designed capsules in this machine.

It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

Model AF-HDG1
Lanes 1
Output Up to 30 capsules/min or 1800 capsules/h
Filling Accuracy ±0.2 grams
Voltage 1*110/220V/50Hz/60Hz   2Kw
Machine weight 500 Kgs
Machine dimensions 2000*900*2000 mm
Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
  1. Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
  2. Maintenance-free, backlash-free carrier plates driven by pneumatic cylinders to transport the containers
  3. Vertical Empty capsules storage and dropping system to save labors and time

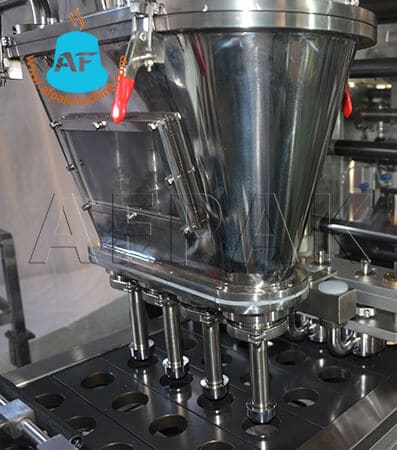

  4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
  5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
  6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
  7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc

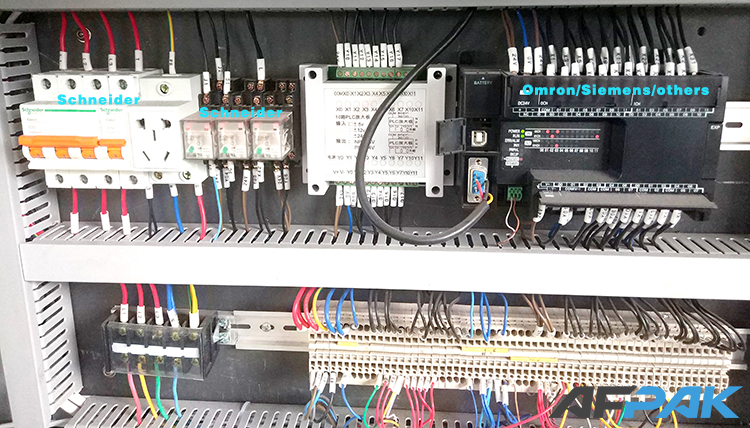

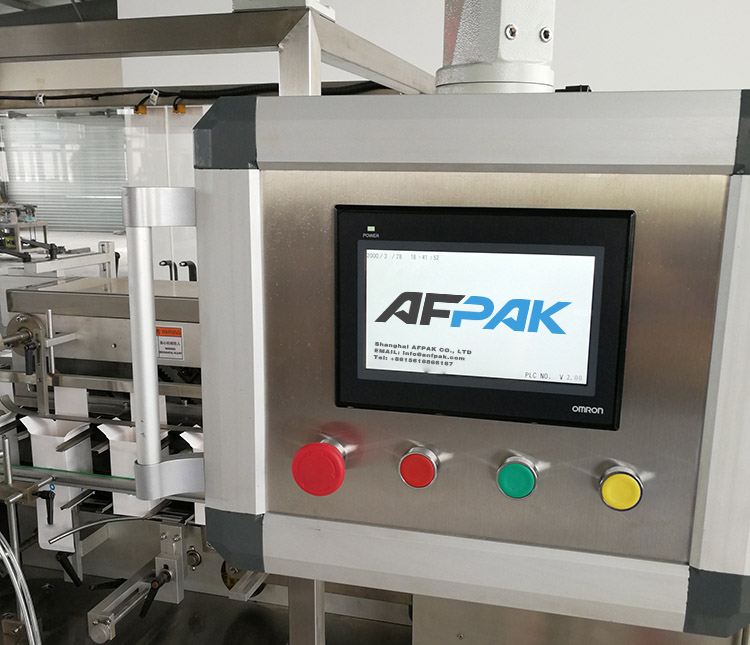

  8. Standard control system from Omron or Siemens or Allen Bradley
  9. Various exit options for different second packaging solutions.
  10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
  11. Easy cleaning and product change, even between coffee and soluble powders
  12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
  13. Safety Door: Open door, machine stop
  1. Vertical capsules feeding system
  2. Automatic detect whether capsules well loaded on the machine by sensor.

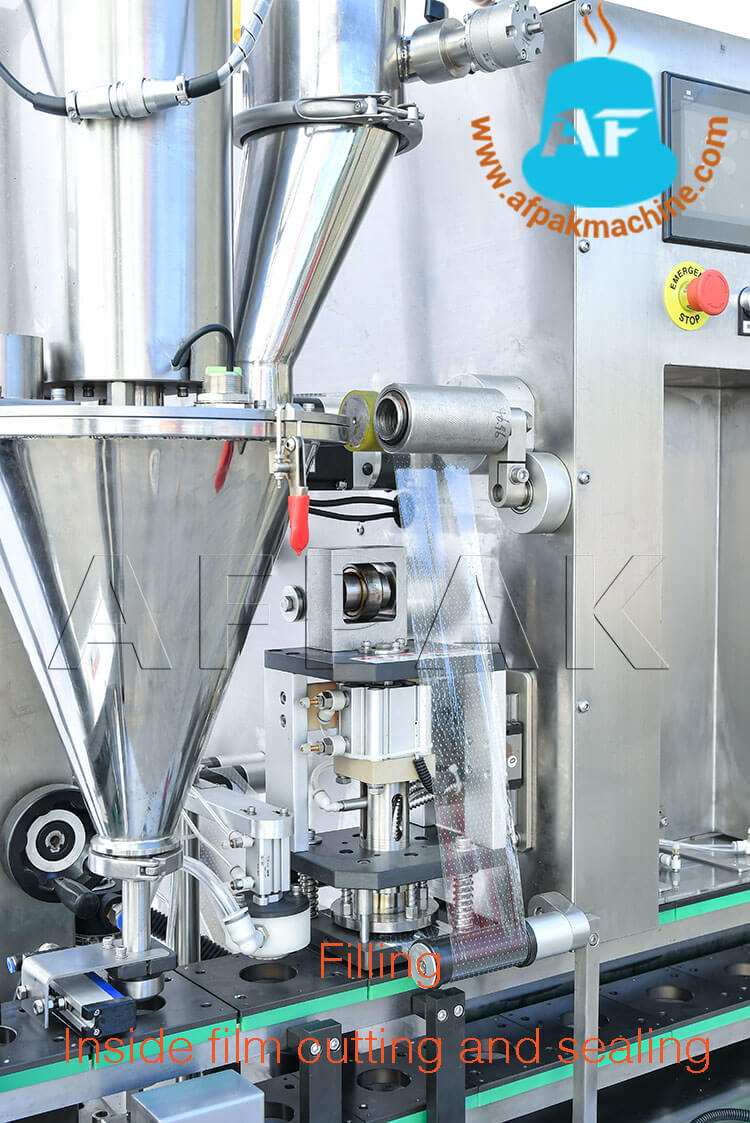

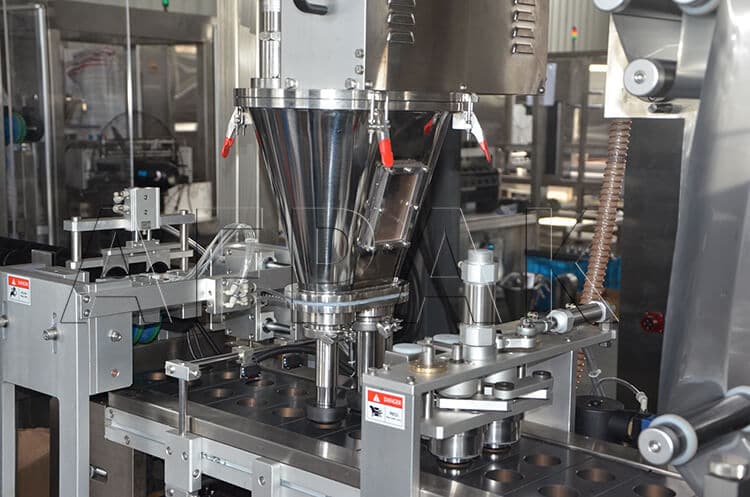

  3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
  4. Clean the capsule edge and press the coffee tightly
  5. Put pre-cut lids (can also use rolled film)

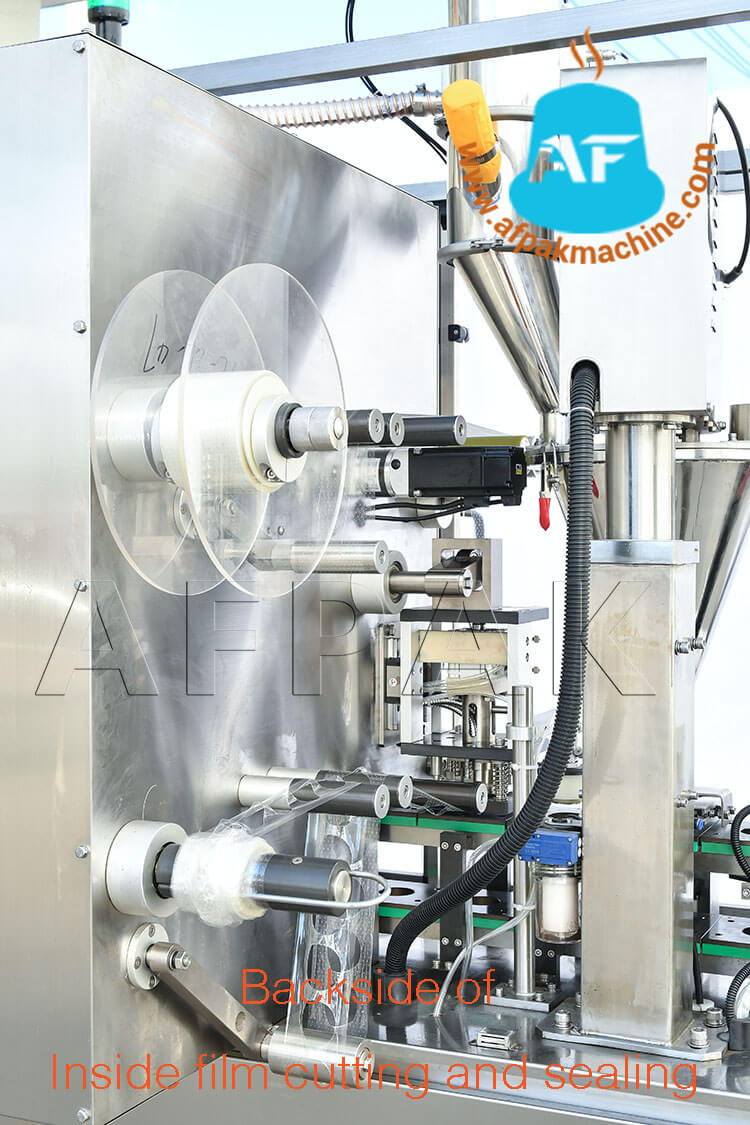

  6. Seal inside perforated film/Paper filter (Nitrogen flushing here)

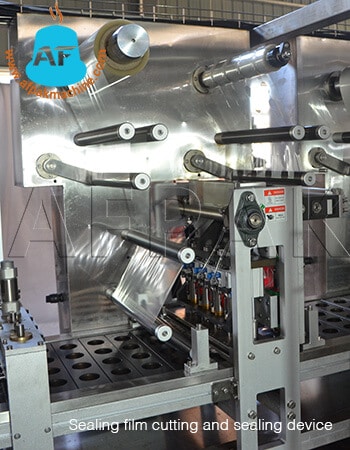

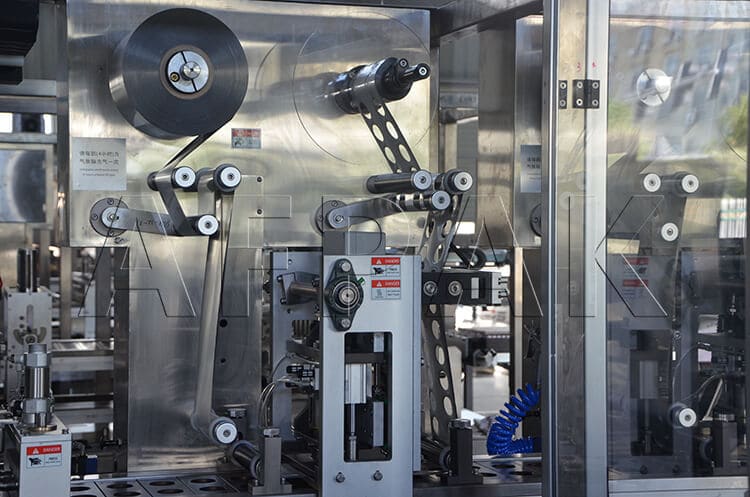

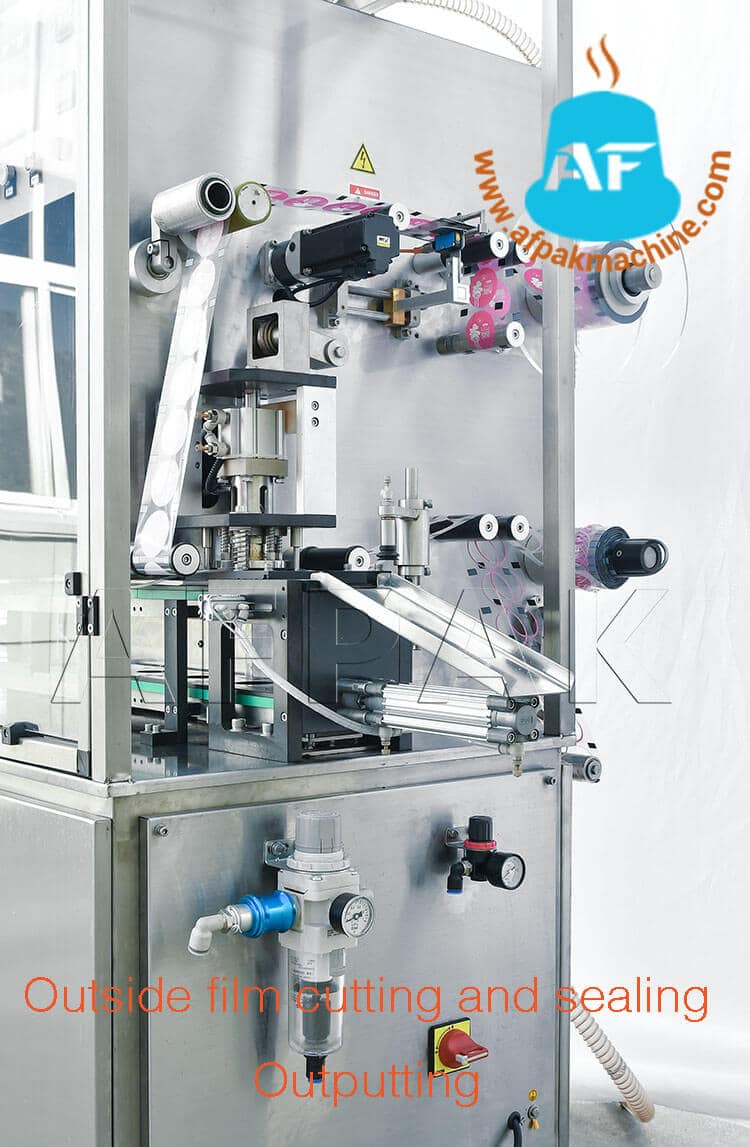

  7. Seal outside aluminum/plastic film
  8. Output to the conveyor
  1. In-line weighing system
  2. Cutting and putting the filter on the capsules button
  3. Integration of pouches packaging machine
  4. Integration of boxes packaging machine
  5. Liquid dosing system for different favors of coffee
  6. Auto sort capsules and feeding to the machine


    Please prove you are human by selecting the flag.

    AF-HDG2 Dolce Gusto Filling & Sealing Machine

    AF-HDG2 Dolce Gusto Coffee Capsule Filling Sealing Machine

    • 2 lanes machine can produce up to 100 Dolce Gusto per min.
    • Can use both Dolce Gusto capsules with/without inner sealer in one machine.
    • Each functions can be controlled uniquely. Very easy to learn and use.
    • Servo motor driven augers to dose the coffee, high accuracy and stable working.

    Brief Introduce:

    The AFPAK AF-HDG2 fills and seals Dolce Gusto compatible capsules. It can produce 2 capsules for each time and produce up to 6000 capsules per hour

    This is a custom-build fully automatic In-line filling and sealing machine according to your capsules.

    It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dreeings, desserts, dry soups, frozen dished, cosmetics, and so on.

    Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

    Model AF-HDG2
    Lanes 2
    Output Up to 100capsules/min or 6000 capsules/h
    Filling Accuracy ±0.2 grams
    Voltage 3*240/400V/50Hz/60Hz   8Kw
    Machine weight 2000 Kgs
    Machine dimesions 4000*1500*2000 mm
    Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
    1. Fast speed: 2 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 100 capsules/min
    2. Maintenance-free, backlash-free timing belt to transport the containers
    3. Empty capsules storage buffer system to save labors and time
    4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
    5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
    6. Sealing temeprature adjustable, beautiful and tight seal guaranteed.
    7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
    8. Standard control system from Omron or Siemens or Allen Bradley
    9. Various exit options for different second packaging solutions.
    10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
    11. Easy cleanning and product change, even between coffee and soluble powders
    12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
    1. Vertical capsules feeding system
    2. Automatic detect whether capsules well loaded on the machine by sensor.
    3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
    4. Clean the capsule edge and press the coffee tightly
    5. Put pre-cut lids (can also use rolled film)
    6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
    7. Seal outside aluminum/plastic film
    8. Output to the conveyor
    9. Reject the unqualified capsules.
    1. In-line weighing system
    2. Cutting and putting the filter on the capsules button
    3. Integration of pouches packaging machine
    4. Integration of boxes packaging machine
    5. Liquid dosing system for different favors of coffee
    6. Auto sort capsules and feeding to the machine


      Please prove you are human by selecting the star.

      AF-HDG4 Dolce Gusto Filling & Sealing Machine

      H4 Dolce Gusto filling machine

      AF-HDG4 Dolce Gusto Coffee Capsule Filling Sealing Machine

      • Four lanes machine can produce up to 200 Dolce Gusto per min.
      • Can be extended with various additional functions.
      • Low noise emissions, meets the highest standards set for process hygiene.
      • Fast delivery, and easy to learn, use and maintain.

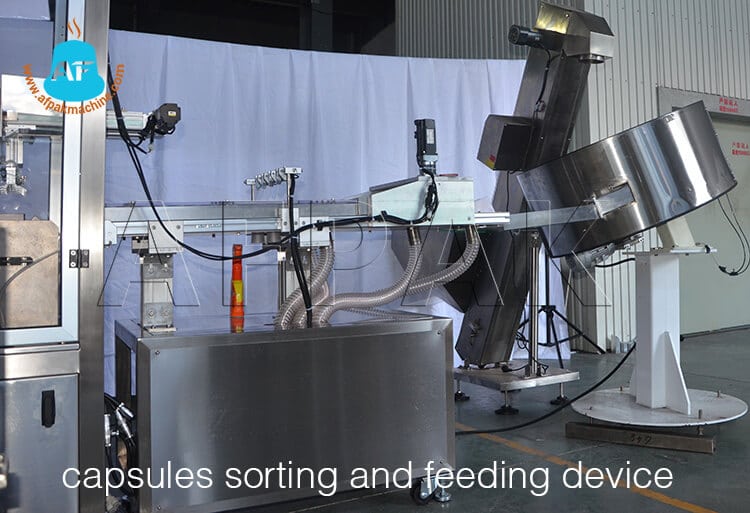

      • Special designed Empty capsules sorting and feeding device to save cost and labor.

      Brief Introduce:

      The AFPAK AF-HDG4 fills and seals Dolce Gusto compatible capsules.

      This is a custom-build fully automatic In-line filling and sealing machine according to your capsules.

      It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

      Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

      Model AF-HDG4
      Lanes 4
      Output Up to 200capsules/min or 12000 capsules/h
      Filling Accuracy ±0.2 grams
      Voltage 3*240/400V/50Hz/60Hz   8Kw
      Machine weight 2000 Kgs
      Machine dimensions 6000*1500*2000 mm
      Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
      1. Fast speed: 4 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 200 capsules/min
      2. Maintenance-free, backlash-free timing belt to transport the containers
      3. Empty capsules storage buffer system to save labors and time
      4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
      5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
      6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
      7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
      8. Standard control system from Omron or Siemens or Allen Bradley
      9. Various exit options for different second packaging solutions.
      10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
      11. Easy cleaning and product change, even between coffee and soluble powders
      1. Auto sort capsules and feeding to the machine
      2. Automatic detect whether capsules well loaded on the machine by sensor.
      3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
      4. Clean the capsule edge and press the coffee tightly
      5. Put pre-cut lids (can also use rolled film)
      6. Seal inside perforated film (Nitrogen flushing here)
      7. Seal outside aluminum/plastic film
      8. Output to the conveyor
      9. Reject the unqualified capsules.
      1. In-line weighing system
      2. Cutting and putting the filter on the capsules button
      3. Integration of pouches packaging machine
      4. Integration of boxes packaging machine
      5. Liquid dosing system for different favors of coffee


        Please prove you are human by selecting the truck.

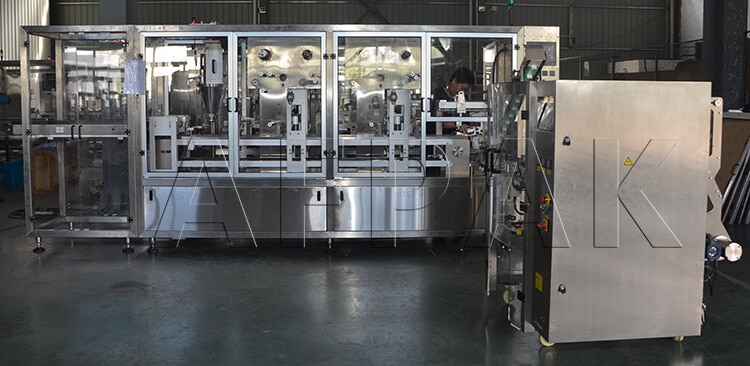

        AF-B10 Dolce Gusto Packaging Machine

        Dolce Gusto Packaging Machine

        Ideal choice

        AF-B10 Dolce Gusto Packaging Machine

        • It can produce up to 40 boxes per minute
        • Can change parts to produce different sizes of the boxes.
        • This machine can be easily connected with any filling and sealing machines.
        • Fast delivery, and easy to learn, use and maintain.
        • It suits to pack 10-40 dolce gusto capsules in one boxes

        Brief Introduce:

        What is Dolce Gusto Packaging machine?

        Dolce gusto packaging machine is an automatic solution to pack dolce gusto capsules into boxes. Generally speaking, it has the functions of automatic box opening, automatic bottom sealing, automatic counting, automatic top sealing, and automatic glue spraying. Affordable, high efficiency, simple operation, stability, and excellent performance are all its advantages. Especially suitable for the production of most DOLCE GUSTO packaging boxes

        The AFPAK AF-B10 DOLCE GUSTO packaging machine is an advanced dolce gusto packaging process.It can help customers produce more products faster and more stably

        This is a custom-build fully automatic In-line packaging machine according to your capsules.

        Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

        Model AF-B10
        Lanes 1
        Output Up to 40 boxes/min
        Filling Accuracy ±0.2 grams
        Voltage 3*240/400V/50Hz/60Hz   8Kw
        Machine weight 2000 Kgs
        Machine dimensions 5000*2000*1800 mm
        Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration

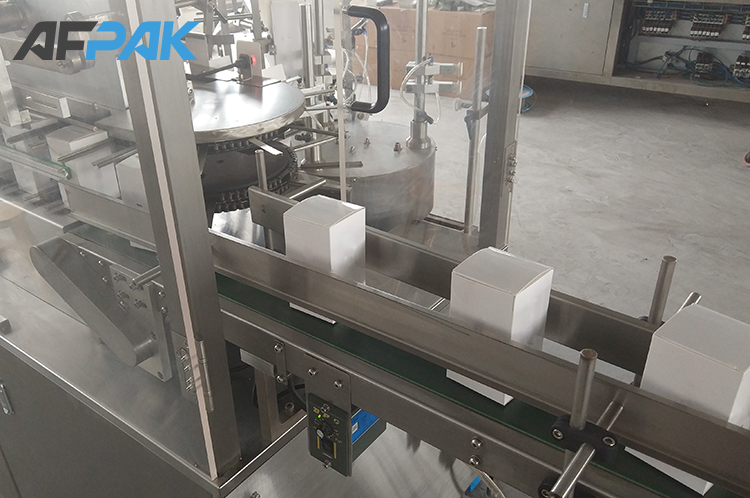

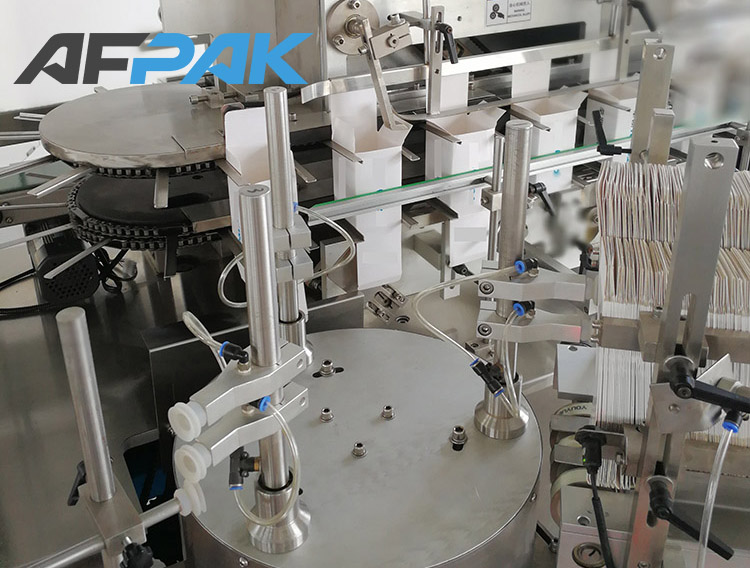

        1. Auto Open the boxes
        2. Auto spray glue and close the bottom of the boxes
        3. Auto counting the dolce gusto capsules and dropping into the boxes
        4. Auto spray glue and close the top of the boxes
        5. Auto output the finished boxes
        1. In-line weighing system
        2. Date printing
        3. Mental detect

        dav

        edf


          Please prove you are human by selecting the tree.

          Custom-build Service

          AFPAK Has a strong research and developing team to design the machines according to your requirement.

          Please make your needs clear, we will make the most suitable machine for you.

          Good after-sale service

          After-sale service is very important to the users of the machine. AFPAK build the machines by ourselves, so we know every problem you will face and have a complete solution for the problems you are facing.

          Top quality and fast delivery

          AFPAK is very strict to the quality of the manufacturing workers and engineers, all our workers have at least 5 years in the machines building industry to ensure the best manufacturing process for our customers.
