Lavazza CAPSULE FILLING & SEALING MACHINES

AFPAK is the manufacturer, especially for coffee capsules packaging industrial. We have the most popular coffee capsules packaging solutions, such as Nespresso, K cup, Lavazza Blue, Lavazza Espresso Point, etc.

We not only build coffee capsules filling sealing machines but also build the bags/box packaging machines for our customers. Please note: AF-H2/H4/H6 can only produce one size capsule on one machine.

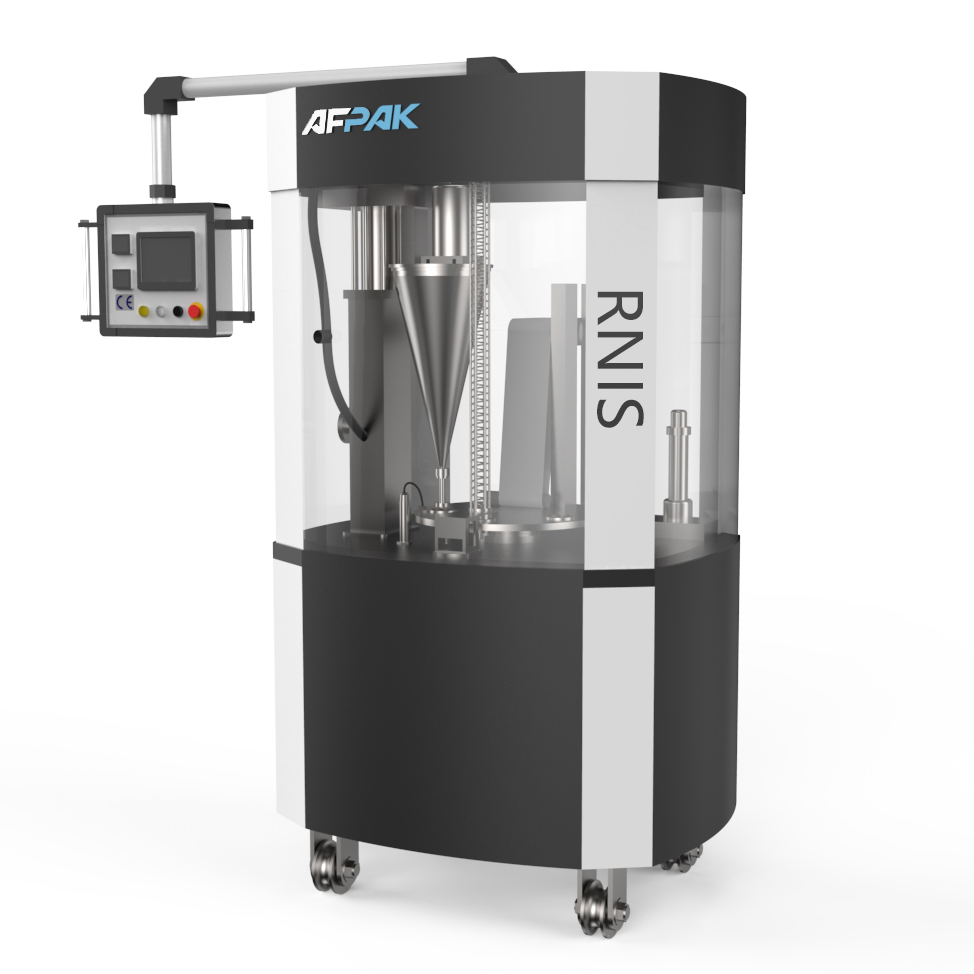

AF-RL1S Lavazza Coffee Capsule Filling Sealing Machine

NESPRESSO FILLING MACHINE

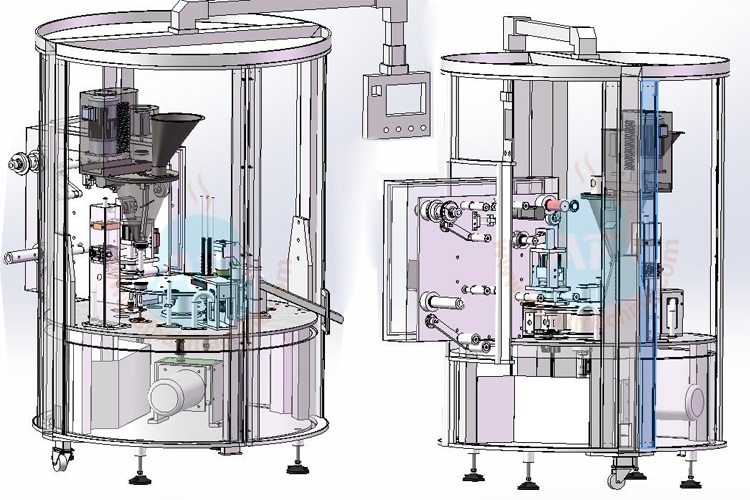

AF-RL1S Lavazza Coffee Capsule Filling Sealing Machine

  • 1 lane working, Up to 70 cycles/min, Produce up to 70 capsules/min.
  • Round table driven by motor, maintain-free design.
  • Low noise emissions, meets the highest standards set for process hygiene.
  • Fast delivery, and easy to learn, use and maintain.

Brief Introduce:

The AFPAK AF-RL1S Lavazza filling sealing machine is a full automatic machine and very popular because of its small size, fast speed and easy to use.

We have built this machine to produce Lavazza blue, a modo mio, and espresso point capsules.

This is a customize-built machine, you can use your own designed capsules in this machine.

It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dreeings, desserts, dry soups, frozen dished, cosmetics, and so on.

Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.

Model AF-RL1S
Lanes 1
Output Up to 50 capsules/min or 3000 capsules/h
Filling Accuracy ±0.2 grams
Voltage 1* 110V/220V/50HZ/60HZ
Machine weight 500 Kgs
Machine dimensions 2000*1300*2000 mm
Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
  1. Fast speed: 1 lane working, Up to 50 cycles/min, Produce up to 50 capsules/min.
  2. Round table driven by motor, maintain-free design.
  3. Vertical Empty capsules storage and dropping system to save labors and time

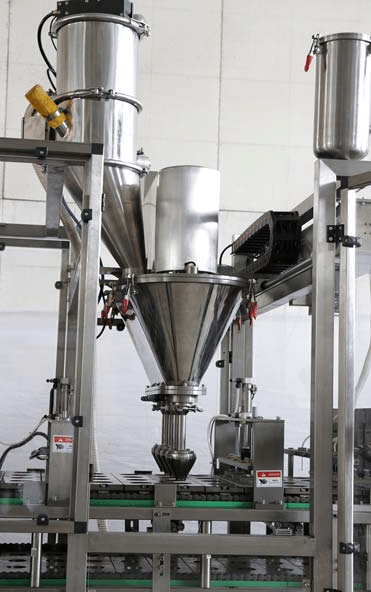

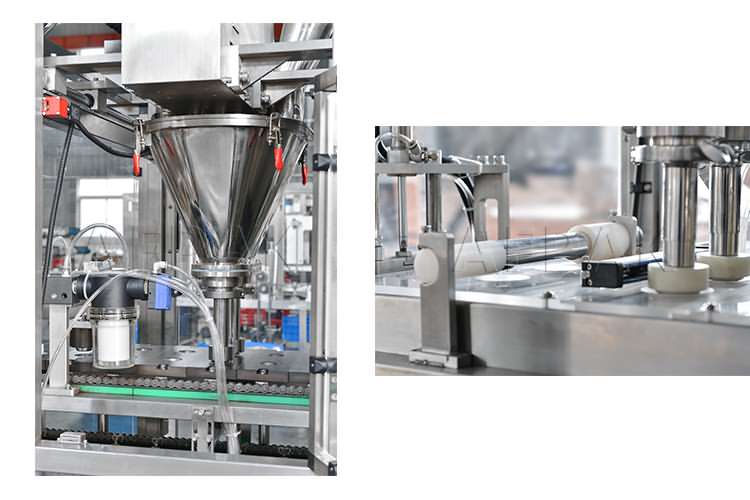

  4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
  5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean

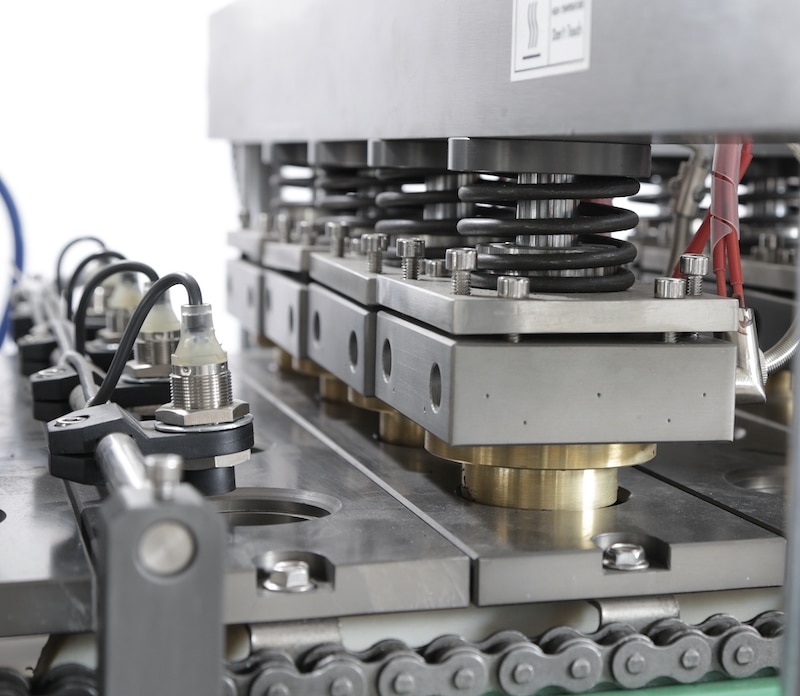

  6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
  7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
  8. Standard control system from Omron or Siemens or Allen Bradley

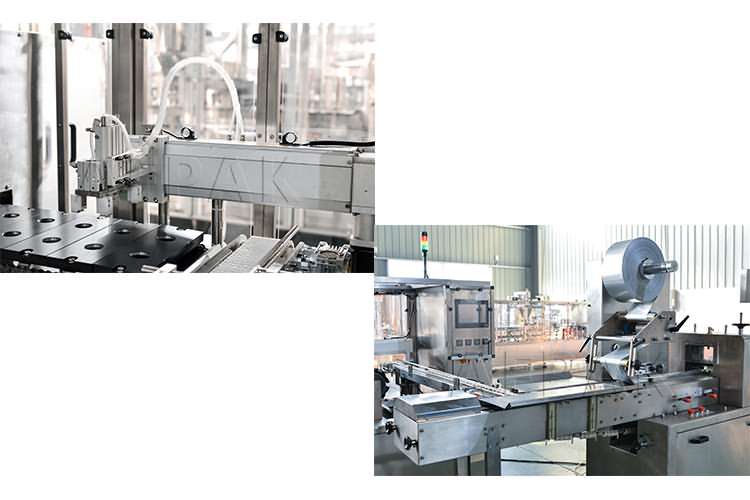

  9. Various exit options for different second packaging solutions.
  10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
  11. Easy cleaning and product change, even between coffee and soluble powders
  12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
  13. Safety Door: Open door, machine stop
  14. Small footprint layout required: you can put this machine in any places
  1. Vertical capsules feeding system
  2. Automatic detect whether capsules well loaded on the machine by sensor.
  3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
  4. Clean the capsule edge and press the coffee tightly
  5. Put pre-cut lids (can also use rolled film)
  6. Seal outside aluminum/plastic film
  7. Output to the conveyor
  1. In-line weighing system

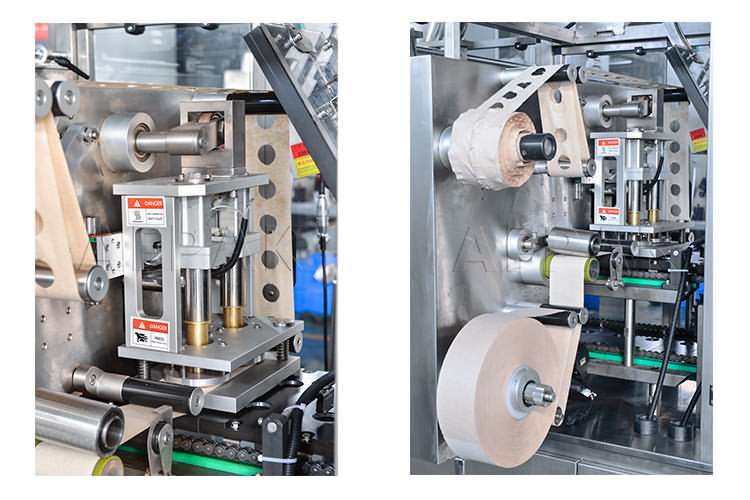

  2. Cutting and putting the filter on the capsules button
  3. Integration of pouches packaging machine
  4. Integration of boxes packaging machine
  5. Liquid dosing system for different favors of coffee
  6. Auto sort capsules and feeding to the machine


    Please prove you are human by selecting the plane.

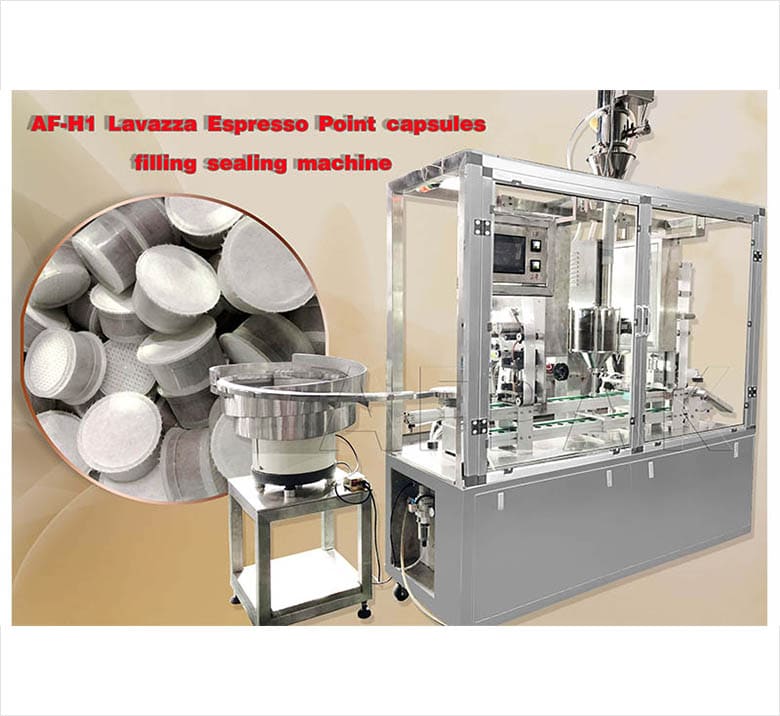

    AF-HL1 Lavazza Coffee Capsule Filling Sealing Machine

    • The basic machine, 1 lanes can produce up to 30 Lavazza per min.
    • Pneumatic system driven carrier plates, very easy to maintain and clean
    • Handle different capsule styles with easy size changeover.
    • Small footprint layout, easy to use and maintain.

    Brief Introduce:

    AFPAK has produced the machine for Lavazza blue capsules, Lavazza a modo mio capsules and Lavazza espresso point capsules.

    The AFPAK AF-HL1 Nespresso capsules filling sealing is designed for small and startup coffee companies.

    This is a customize-built machine, you can use your own designed capsules in this machine。

    It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

    Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.

    Model AF-HL1
    Lanes 1
    Output Up to 30 capsules/min or 1800 capsules/h
    Filling Accuracy ±0.2 grams
    Voltage 1* 110V/220V/50HZ/60HZ
    Machine weight 500 Kgs
    Machine dimensions 2000*900*2000 mm
    Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



    1. Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
    2. Maintenance-free, backlash-free carrier plastes driven by pneumatic cylinders to transport the containers
    3. Vertical Empty capsules storage and dropping system to save labors and time
    4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
    5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
    6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
    7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
    8. Standard control system from Omron or Siemens or Allen Bradley
    9. Various exit options for different second packaging solutions.
    10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
    11. Easy cleaning and product change, even between coffee and soluble powders
    12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
    13. Safety Door: Open door, machine stop
    14. Small footprint layout required: you can put this machine in any places
    1. Vertical capsules feeding system
    2. Automatic detect whether capsules well loaded on the machine by sensor.
    3. Servo motor to fill coffee while vibrating, weight around 7-10g ( can be adjust)(Nitrogen flushing here)
    4. Clean the capsule edge and press the coffee tightly
    5. Put pre-cut lids (can also use rolled film)
    6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
    7. Seal outside aluminum/plastic film
    8. Output to the conveyor
    1. In-line weighing system
    2. Cutting and putting the filter on the capsules button
    3. Integration of pouches packaging machine
    4. Integration of boxes packaging machine
    5. Liquid dosing system for different favors of coffee
    6. Auto sort capsules and feeding to the machine


      Please prove you are human by selecting the truck.

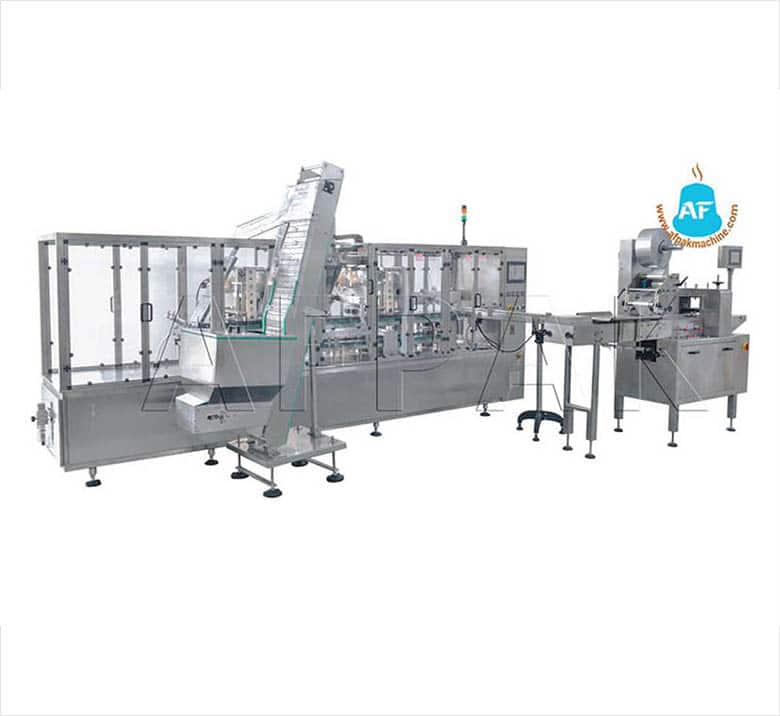

      AF-HL2 Lavazza Coffee Capsule Filling Sealing Machine

      • 2 lanes machine can produce up to 100 Lavazza capsules per min.
      • Each functions can be controlled uniquely. Very easy to learn and use.
      • Servo motor driven augers to dose the coffee, high accuracy and stable working.
      • 5-6 Nitrogen flushing devices to fill over 95% Nitrogen inside capsules to keep coffee fresh.

      Model AF-HK1
      Lanes 1
      Output Up to 30 capsules/min or 1800 capsules/h
      Filling Accuracy ±0.2 grams
      Voltage 1* 110V/220V/50HZ/60HZ
      Machine weight 500 Kgs
      Machine dimensions 2000*900*2000 mm
      Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
      1. Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
      2. Maintenance-free, backlash-free carrier plates driven by pneumatic cylinders to transport the containers
      3. Vertical Empty capsules storage and dropping system to save labors and time
      4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
      5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
      6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
      7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
      8. Standard control system from Omron or Siemens or Allen Bradley
      9. Various exit options for different second packaging solutions.
      10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
      11. Easy cleaning and product change, even between coffee and soluble powders
      12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
      13. Safety Door: Open door, machine stop
      14. Small footprint layout required: you can put this machine in any places
      1. Vertical capsules feeding system
      2. Automatic detect whether capsules well loaded on the machine by sensor.
      3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
      4. Clean the capsule edge and press the coffee tightly
      5. Put pre-cut lids (can also use rolled film)
      6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
      7. Seal outside aluminum/plastic film
      8. Output to the conveyor
      1. In-line weighing system
      2. Cutting and putting the filter on the capsules button
      3. Integration of pouches packaging machine
      4. Integration of boxes packaging machine
      5. Liquid dosing system for different favors of coffee
      6. Auto sort capsules and feeding to the machine


        Please prove you are human by selecting the cup.

        AF-HL4 Lavazza Coffee Capsule Filling Sealing Machine

        H4 Dolce Gusto filling machine
        • Four lanes machine can produce up to 200 Nespresso per min.
        • Can be extended with various additional functions.
        • Low noise emissions, meets the highest standards set for process hygiene.
        • Fast delivery, and easy to learn, use and maintain.

        Brief Introduce:

        The AFPAK AF-HL4 fills and seals Lavazza compatible capsules, such as Lavazza blue, a modo mio, Lavazza point, etc. One machine can only produce one size capsules.

        This is a custom-build fully automatic In-line filling and sealing machine

        It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, tea and coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

        Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

        Model AF-HL4
        Lanes 4
        Output Up to 200capsules/min or 12000 capsules/h
        Filling Accuracy ±0.2 grams
        Voltage 3*240/400V/50Hz/60Hz   8Kw
        Machine weight 2000 Kgs
        Machine dimensions 6000*1500*2000 mm
        Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
        1. Fast speed: 4 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 200 capsules/min
        2. Maintenance-free, backlash-free timing belt to transport the containers
        3. Empty capsules storage buffer system to save labors and time, only feed capsules in each hour

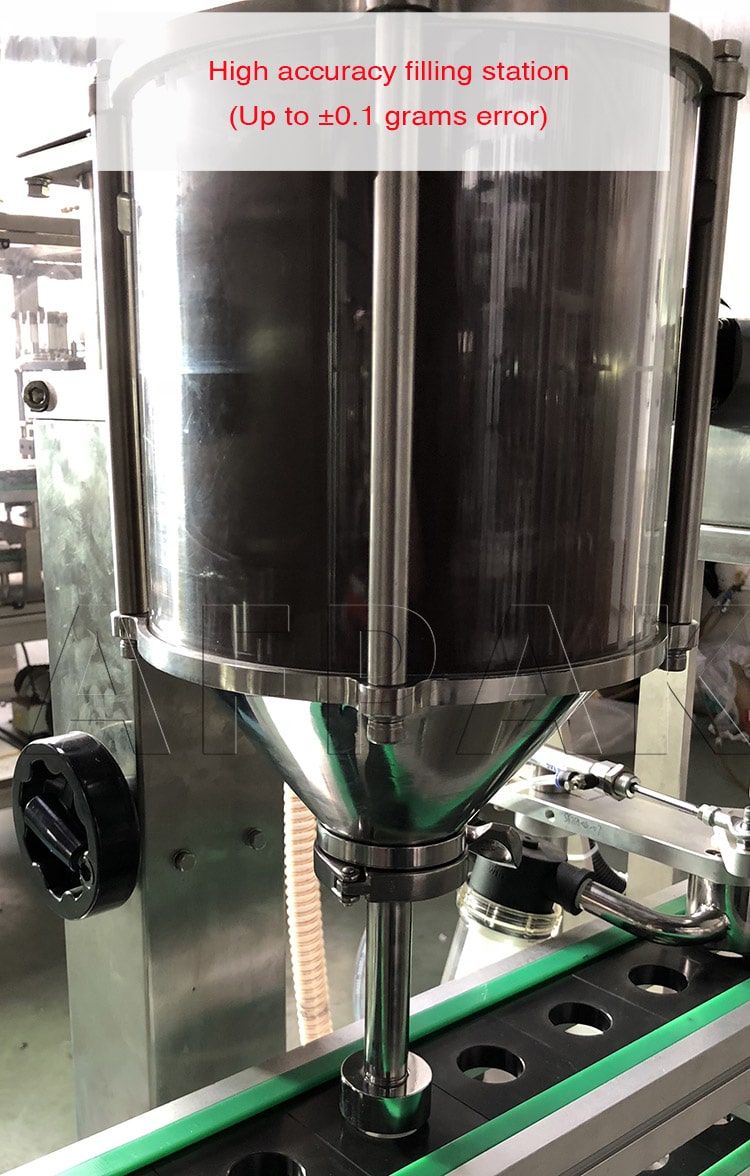

        4. Extremely Precise Dosing: Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
        5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
        6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
        7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
        8. Standard control system from Omron or Siemens or Allen Bradley
        9. Various exit options for different second packaging solutions.
        10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.

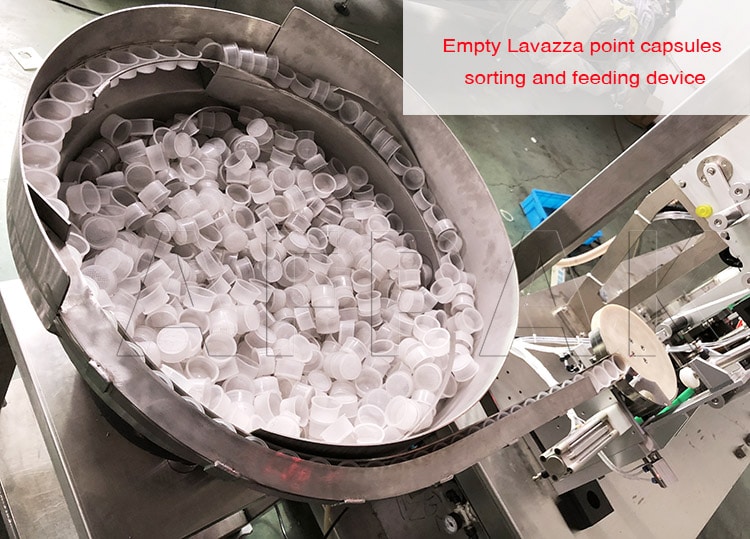

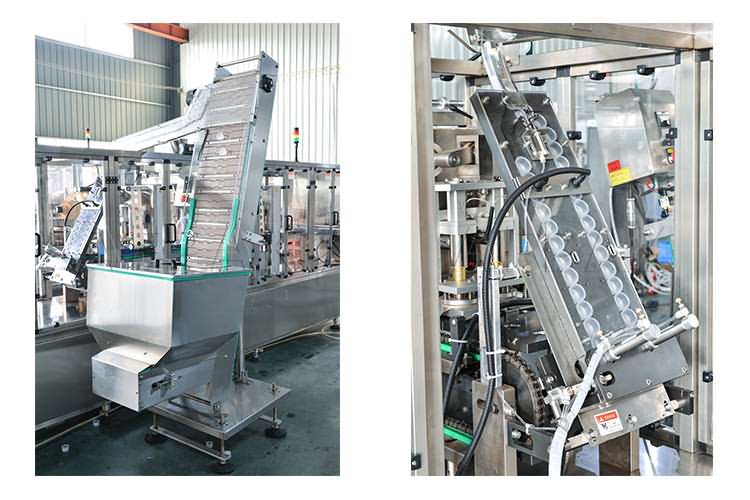

        1. Auto sort capsules and feeding to the machine
        2. Automatic detect whether capsules well loaded on the machine by sensor.

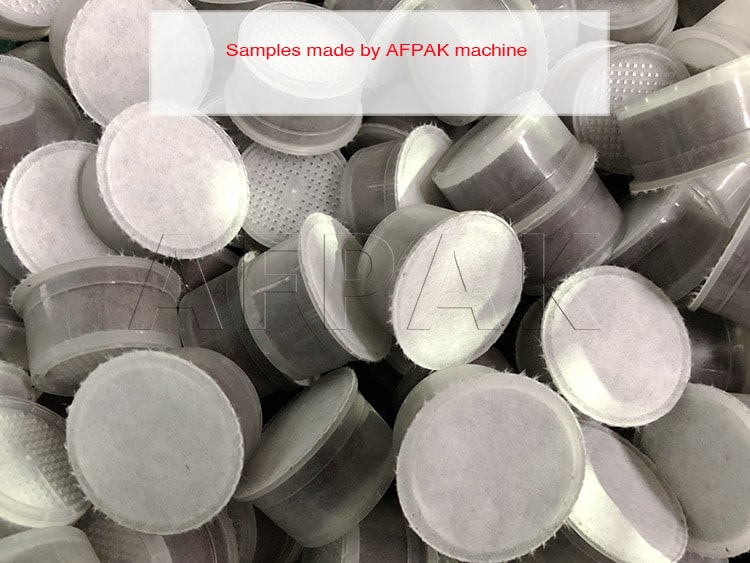

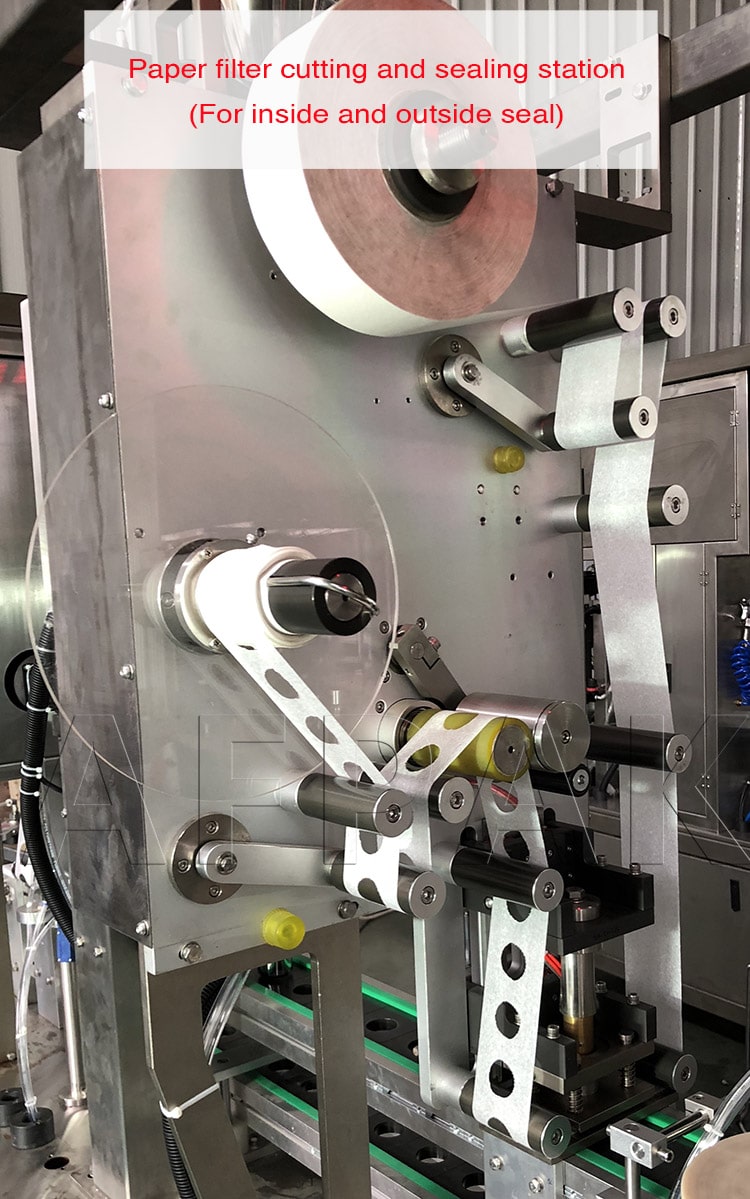

        3. Seal paper filter to the bottom (for lavazza espresso point capsules)
        4. Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
        5. Clean the capsule edge and press the coffee tightly
        6. Put pre-cut lids (can also use rolled film)
        7. Sealing (Nitrogen flushing here)
        8. Output to the conveyor
        9. Reject the unqualified capsules.
        1. On-line weighing system for each capsule
        2. Cutting and putting the filter on the capsules button
        3. Integration of pouches packaging machine
        4. Integration of boxes packaging machine


          Please prove you are human by selecting the truck.
